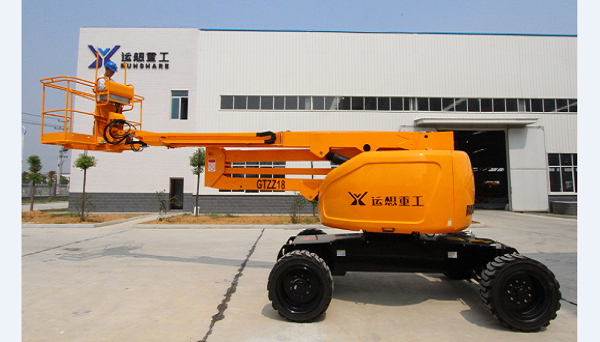

| Model | RZ20 |
|
Working Height Maximum |
20.2m |
|
Platform Height Maximum |
18.2m |
|
Horizontal outreach maximum |
11.26m |
|
Lift capacity |
230kg |
|
up&over clearance maximu |
8.3m |
|
Stowed length(stowed) |
8.23m |
|
Width(stowed) |
2.38m |
|
Height(stowed) |
2.5m |
|
wheelbase |
2.4m |
|
Ground clearance-center |
0.4m |
|
Platform measurement |
1.83m*0.76m |
|
Turing radius(inside) |
1.82m |
|
Turing radius(outside) |
4.85m |
|
Travel speed(stowed) |
4.2km/h |
|
Travel speed(raised) |
1.1km/h |
|
Grade-ability |
45% |
|
Tire type |
33x12-20 |
|
Turntable rotation speed |
0~0.8 rpm |
|
Turntable rotation |
360° |
|
Platform leveling |
auto leveling |
|
Platform rotation |
180° |
|
Fuel tank capacity |
100L |
|
weight |
8800kg |
|
Control voltage |
12V |
|
Drive & steering type |
4x4x2 |
|
Engine |
Yanmar/ Kubota |
|
Engine power |
36kw/2400rpm |
