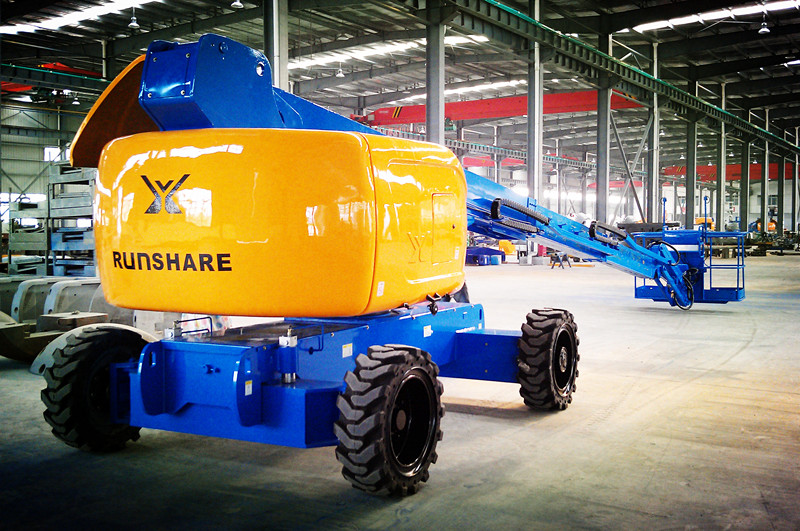

| Model | GTBZ16 |
|
Working Height Maximum |
18.2 m |
|
Platform Height Maximum |
16.2 m |
|
Horizontal outreach maximum |
15 m |
|
Lift capacity （restricted） |
340kg |
|
Lift capacity （non-restricted） |
230kg |
|
length(stowed) |
7.89m |
|
Width(stowed) |
2.39 m |
|
Height(stowed) |
2.58 m |
|
wheelbase |
2.4 m |
|
Ground clearance |
430 mm |
|
Platform measurement |
1.83m*0.76m |
|
Tailswing |
3 m |
|
Turing radius Minimun |
5.6 m |
|
Travel speed(stowed) |
6.3 km/h |
|
Travel speed(raised or extended) |
1.1km/h |
|
Grade-ability |
16.7° 30% |
|
Solid Tire |
33x12-20 |
|
Turntable rotation speed |
0~0.8 rpm |
|
Turntable rotation |
360° continuous |
|
Platform leveling |
automatic leveling |
|
Platform rotation |
±90° |
|
Fuel tank capacity |
151 L |
|
weight |
10,000 kg |
|
Control voltage |
12 V |
|
Drive & steering type |
4*2*2 / 4x4x2 |
|
Engine |
Cummins /Yanmar |
|
Engine power |
35.5kw/2200rpm |
